Refrigerants are essential for cooling systems, helping to maintain comfortable temperatures in our homes, cars, and workplaces. There are different types of refrigerants available in the market, including R-134a. It has become a popular choice as a reliable refrigerant. However, it’s essential to understand its properties, uses and potential risks of R-134a, as it helps consumers and professionals make informed decisions about cooling technologies. This article provides you with every detail you want to know about R-134a.
What is R-134a Refrigerant?
R-134a is a hydrofluorocarbon (HFC) refrigerant that is widely used as a working fluid or gas in various cooling systems. It is also referred to as HFC-134a, norflurane (INN), Klea 134a, Freon 134a, Forane 134a, Genetron 134a, Green Gas, Florasol 134a, Suva 134a, or HFA-134a. The chemical name of R-134a is 1,1,1,2-Tetrafluoroethane and the chemical formula structure is C2H2F4 or CF3CH2F.
Properties of R-134a
Physical and Chemical Properties
- APPEARANCE: Clear, colorless liquid and vapor
- PHYSICAL STATE: Gas at ambient temperatures
- MOLECULAR WEIGHT: 102.03 g/mol
- CHEMICAL FORMULA: F3CCH2F
- ODOR: Faint ethereal odor
- SPECIFIC GRAVITY (water = 1.0): <1.22
- SOLUBILITY IN WATER (weight %): 0.15 wt%
- pH: Neutral
- BOILING POINT: -26.2°C (-15.1°F)
- FREEZING POINT: -92.5°C (-141.9°F)
- VAPOR PRESSURE: 85.8 psia @ 70°F 213.4 psia @ 130°F
- VAPOR DENSITY (air = 1.0): 3.5
- EVAPORATION RATE: >1 COMPARED TO: CC14 = 1
- % VOLATILES: 100
Flammable Properties
- FLASH POINT: Gas, not applicable per DOT regulations
- FLASH POINT METHOD: Not applicable
- AUTOIGNITION TEMPERATURE: >750°C
- UPPER FLAME LIMIT (volume % in air): None*
- LOWER FLAME LIMIT (volume % in air): None*
- FLAME PROPAGATION RATE (solids): Not applicable
- OSHA FLAMMABILITY CLASS: Not applicable
What Color is R-134a Refrigerant?

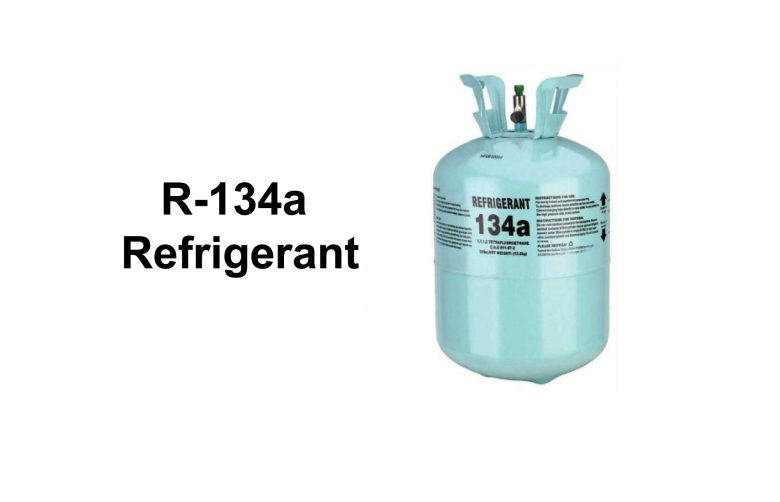

According to Refrigerants, standards, R-134a is a clear and colorless refrigerant in both gaseous and liquid states. It is typically stored in light blue-colored cylinders.
What is the Odor of R-134a Refrigerant?
R-134a refrigerant is generally described as having faint ethereal odor. However, the odor is usually quite subtle and may not be noticeable in small amounts. This is why detecting leaks by smell alone can be difficult, and electronic leak detectors are often used for safety and accuracy in identifying any leaks in systems containing R-134a.
Is R-134a Refrigerant Flammable?
According to the University of Oregon, R-134a is a non-flammable gas that works to maintain consistent cool temperatures in a variety of refrigeration systems. This means it’s much safer for a range of applications, especially in car air conditioning systems where incidents do happen. At very high temperatures above 750°C, however, R-134a can decompose into toxic and possibly flammable by-products such as hydrogen fluoride and carbonyl fluoride. It is usually harmless, but good care and the avoidance of extreme heat application are also recommended.
When and Why R-134a Refrigerant was Developed?
R-134a was introduced in the early 1990s as a replacement for R-12 (a chlorofluorocarbon).
The main reason for this replacement was the environmental impact of R-12’s chlorine on the ozone layer. When CFCs like R-12 release chlorine into the atmosphere, they break down ozone molecules, significantly contributing to ozone layer depletion.
R-134a, on the other hand, has a much lower ozone depletion potential (ODP) because it does not contain chlorine. It also has a lower global warming potential (GWP) of 1,430, compared to R-12’s much higher GWP of 10,900. This made R-134a a significant improvement over R-12 from an environmental perspective at the time of its introduction.
How is R-134a Made?
According to Google patents, R-134a is produced from trichloroethylene through a two-step process. In the first stage, trichloroethylene is reacted with hydrogen fluoride in a reactor to create 1,1,1-trifluoro-2-chloroethane (133a). Then, in a separate reactor, this intermediate compound (133a) undergoes another reaction with hydrogen fluoride to yield 1,1,1,2-tetrafluoroethane. This method is innovative in that it reverses the usual sequence of reactors, allowing the entire output stream from the HFA 134a reactor, along with trichloroethylene, to pass through the 133a reactor. In this setup, 134a and hydrogen chloride are separated from the recycled stream between the two reactors, enhancing the efficiency of the process.
Uses of R-134a Refrigerant
R134a refrigerant is used in various applications due to its cooling efficiency and relatively low environmental impact compared to older refrigerants. Here are some common uses:
- Automotive Air Conditioning: R134a is most commonly found in car air conditioning systems, where it efficiently cools the cabin while being non-toxic and non-flammable.
- Home Refrigerators and Freezers: It is used in household refrigerators and freezers, offering an efficient cooling cycle without depleting the ozone layer, unlike older refrigerants like R-12.
- Commercial Refrigeration: R134a is used in commercial refrigeration systems, such as in supermarkets, restaurants, and industrial food storage. It’s employed in both large systems and smaller cooling units.
- Air Conditioning Systems: Besides automotive use, R134a is also used in residential and commercial air conditioning systems, providing cooling for homes, offices, and larger commercial spaces.
- HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, R134a is often used in heat pumps and chillers that regulate the temperature in various settings, such as in schools, hospitals, and factories.
- Medical and Laboratory Equipment: Some specialized medical and laboratory cooling equipment, such as cryogenic freezers and cold storage systems, may also use R134a due to its stable properties.
Dangers of R-134a Refrigerant
Although R-134a is said to be safe in most operations, there is still danger from the refrigerant. Understanding these risks will be paramount for protecting both people and the environment:
- Health Hazards– Direct contact of R-134a liquid can cause severe irritation and frostbite of your skin and eyes.
- Pressure Hazards: R-134a is stored under high pressure, and improper handling or leaks in the system can result in dangerous situations, including bursts or ruptures of containers or refrigeration systems.
- Decomposition Hazards-As mentioned earlier, R-134a can decompose at elevated temperatures into toxic by-products, such as hydrogen fluoride.
- Environmental Effects– Though R-134a has very less ODP. However, due to its high GWP, it contributes to climatic change. It is required to make efforts in order to reduce the actual amount of R-134a emission in the atmosphere for mitigation of its environmental impact.
Conclusion
For its Non-flammable and low toxicity properties, R-134a has over the years been a reliable refrigerant. However, its high contribution to global warming means it is being replaced gradually by more environmentally friendly alternatives. Understanding the properties, uses, and risks of R-134a is therefore essential for its safe and effective management within modern HVAC systems.
FAQs
What Type of Refrigerant is R-134a?
As discussed earlier, R-134a falls in the category of HFC refrigerants which replaces refrigerants that are considered environmentally hazardous.
References:
https://refrigerants.com/wp-content/uploads/2019/12/SDS-R134a.pdf
https://safety.uoregon.edu/sites/default/files/safety_sheet_-_refrigerant_r134a.pdf
https://patents.google.com/patent/US5382722A/en
https://en.wikipedia.org/wiki/1,1,1,2-Tetrafluoroethane
